0-60Mpa Hydraulic Pressure Gauge Test Kit With Portable Case Digital Manometer Measurement Instruments for Excavators Use

0
(0)
0 1541
$48.88 $34.22
-30%
In Stock
G1D23201I2D3

0-60Mpa Hydraulic Pressure Gauge Test Kit With Portable Case Digital Manometer Measurement Instruments for Excavators Use

Features & Details

  • 【ACCURATE MEASUREMENT】- hydraulic pressure gauge kit comes with three gauges of different working pressures: 25/40/60 Mpa. A bright and accurate scale ensures accurate pressure measurement, efficiency, and convenience.

  • 【INTERCHANGEABLE FITTINGS】- This hydraulic pressure tester works with interchangeable test couplings with the following sizes: G1/8, G1/4,G3/8,M10/1,M10/1.25,M14/1.5,UNF7/16-20,UNF9/16-18,Quick connector.

  • 【PRMIUM MATERIAL】- Test hose is made of nylon(interior), aramid fiber(middle), and polyurethane(exterior), having the characteristics of heat resistance and pressure resistance.

  • 【PROTECTIVE CASE 】- Sturdy case and thick high-grade sponge for perfect protection of hydraulic test gauges, have more excellent resistance to pressure. The hydraulic gauge test kit is easy to carry with compact size.

  • 【VARIOUS APPLICATION】- The hydraulic pressure gauge test kit is for most excavators and machines on the market. A hydraulic test gauge is used in construction, machinery, shipping, mining, petroleum, chemical industry, etc.

Key Features

  • Accurate Pressure Gauge

     3 pressure gauge ranges: 0-25Mpa, 0-40Mpa, 0-60Mpa. Clear and accurate scale.

  • Various Test Couplings

    This hydraulic test gauge kit comes with 8/9/11 PCS test couplings. High quality with resistance to oil, acid, alkali, corrosion, and high pressure.

  • High-quality Material

    The hydraulic pressure gauge set is made of 304 stainless steel shell, durable, with anti-corrosion and anti-rust properties.

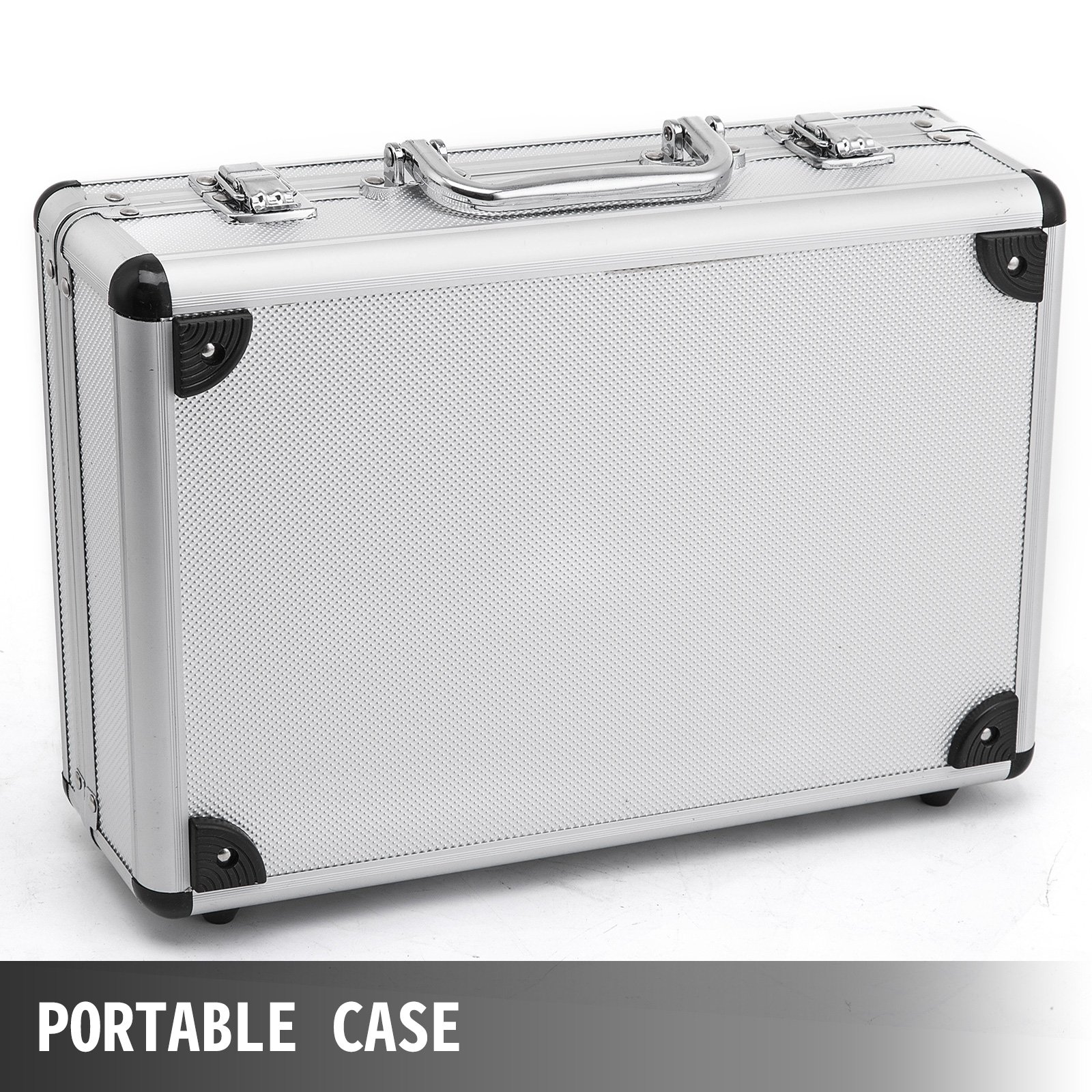

  • Portable Case

    With a box for protection of the test tool and convenient to store. Sturdy plastic box packaging and thick high-grade sponge have more excellent resistance to pressure.

  • 1/1.5 m Test Hose

    The test hose has the characteristics of resistance to heat and pressure with premium material and particular structure. 1.5 m long allows work from a long distance.

  • Wide Application

    The hydraulic gauge test kit is suitable for most excavators and machines on the market. Widely used in construction, machinery, shipping, mining, petroleum, the chemical industry, etc.

8 Pcs Test Couplings Hydraulic Pressure Test Kit

This item is a straight hydraulic pressure testing set, include: three pressure gauge, and eight couplings. It can provide reliable pressure measuring results, very easy to connect and use. It features compact structure, convenient use, high pressure and impact resistance, safety, and reliability.

  • Accurate Measurement

  • Interchangeable Fittings

  • Premium Material

  • Protective Case

Specifications

  • Pressure gauge: Ø63 mm-25 MPa(25 MPA/250 Kg/c㎡) QTY: 1PC

  • Pressure gauge: Ø63 mm-40 MPa(40 MPA/400 Kg/c㎡) QTY: 1PC

  • Pressure gauge: Ø63 mm-60 MPa(60 MPA/600 Kg/c㎡) QTY: 1PC

  • Test hose: Length=1.5 m QTY: 3PC

  • Test coupling: G1/8 QTY: 1PC

  • Test coupling: G1/4 QTY: 1PC

  • Test coupling: G3/8 QTY: 1PC

  • Test coupling: M10/1 QTY: 1PC

  • Test coupling: M10/1.25 QTY: 1PC

  • Test coupling: M14/1.5 QTY: 1PC

  • Test coupling: UNF7/16-20 QTY: 1PC

  • Test coupling: UNF9/16-18 QTY: 1PC

  • Quick connector -(for Caterpillar CAT) QTY: 1PC

Package Contents
  • 1 Set Excavator Hydraulic Pressure Test Kit

11 PCS Test Couplings Hydraulic Pressure Test Kit

This item is a straight hydraulic pressure testing set, include: three pressure gauge, three connect tube, ten couplings, and 1 quick-release coupling. It can provide reliable pressure measuring results, very easy to connect and use. It features compact structure, convenient use, high pressure and impact resistance, safety, and reliability.

  • Accurate Measurement

  • Interchangeable Fittings

  • Premium Material

  • Protective Case

Specifications

  • Pressure gauge 1: φ60 mm-3625 PSI(250 Bar/25 MPa)

  • Pressure gauge 2: φ60 mm-5800 PSI (400 Bar/40 MPa)

  • Pressure gauge 3: φ60 mm-8700 PSI (600 Bar/60 MPa)

  • Test hose: 1 M / 39"

  • Test coupling 1: G 1/4

  • Test coupling 2: R 1/4

  • Test coupling 3: G 3/8

  • Test coupling 4: G 1/8

  • Test coupling 5: M 10*1

  • Test coupling 6: M 10*1.25

  • Test coupling 7: M 1/8

  • Test coupling 8: M14*1.5

  • Test coupling 9: 7/16

  • Test coupling 10: 9/16

  • Quick Release Connector: G1/8

Package Contents
  • 3 x Pressure Gauge

  • 10 x Couplings

  • 1 x Quick Connector

  • 3 x Connect Hose

  • 1 x Aluminum Carry Case

9 PCS Test Couplings Hydraulic Pressure Test Kit

This item is a straight hydraulic pressure testing set, include: three pressure gauge, and eight couplings. It can provide reliable pressure measuring results, very easy to connect and use. It features compact structure, convenient use, high pressure and impact resistance, safety, and reliability.

  • Accurate Measurement

  • Interchangeable Fittings

  • Premium Material

  • Protective Case

Specifications

  • Pressure gauge 1: Ø63 mm-25 MPa(25 MPA/250 Kg/c㎡) QTY: 1PC

  • Pressure gauge 2: Ø63 mm-40 MPa(40 MPA/400 Kg/c㎡) QTY: 1PC

  • Pressure gauge 3: Ø63 mm-60 MPa(60 MPA/600 Kg/c㎡) QTY: 1PC

  • Test hose:5.25ft/1.6 m

  • Test coupling 1: G1/8

  • Test coupling 2: G1/4

  • Test coupling 3: G3/8

  • Test coupling 4: M10/1

  • Test coupling 5: M10/1.25

  • Test coupling 6: M14/1.5

  • Test coupling 7: UNF7/16-20

  • Test coupling 8: UNF9/16-18

  • Test coupling 9: NPT1/4

Package Contents
  • 1 Set Excavator Hydraulic Pressure Test Kit

  • 1 X Quick Connector

  • 9 X Couplings

  • 3 X Connect Hoses

  • 1 X Plastic Carry Case
